Product Introduction

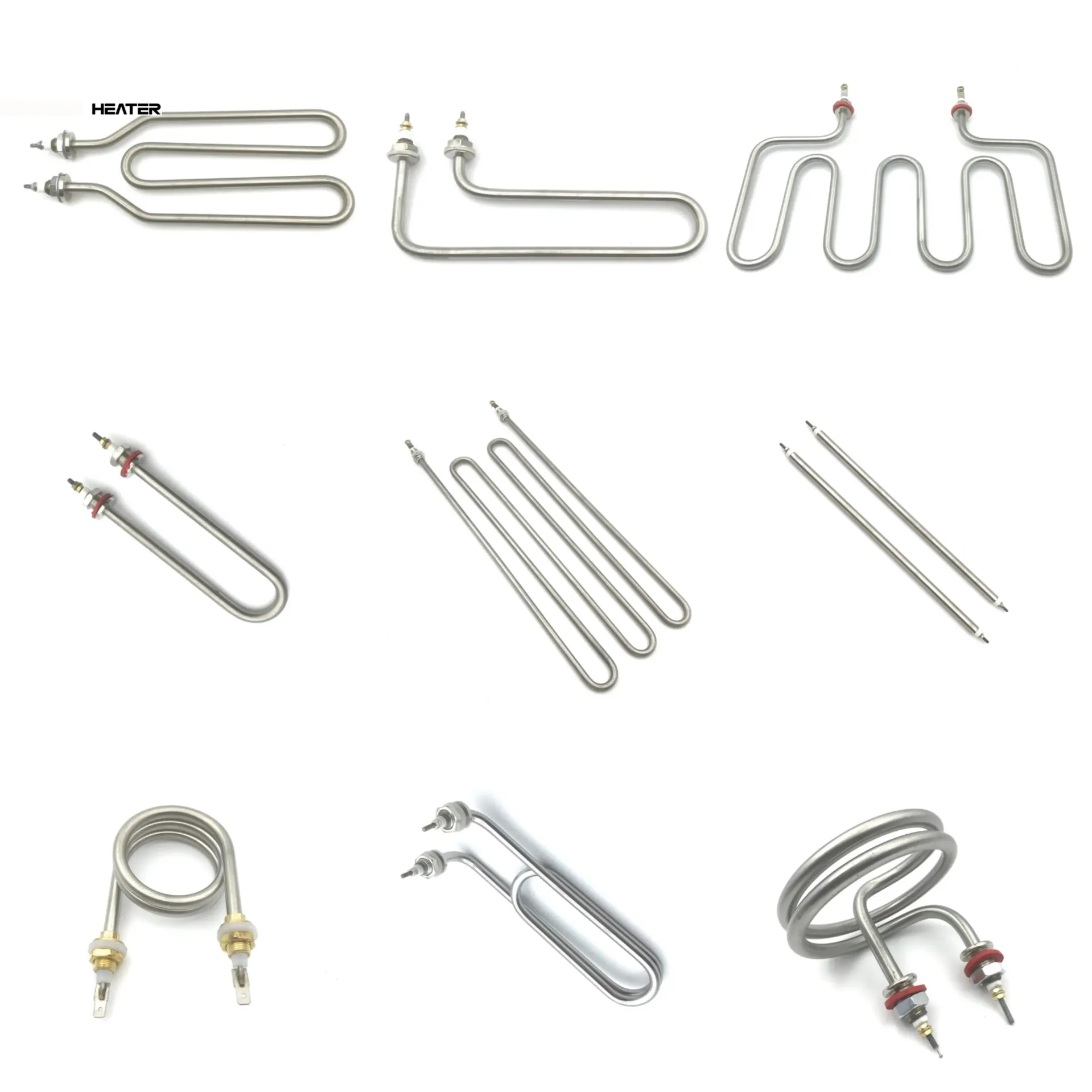

Tubular heaters include three structures: U-shape, W-shape and I-shape. It adopts stainless steel plain tube without fins, with threaded fixing structure on both ends and double terminal leads. It can be used for air dry heating (oven, fermentation cabinet) and heating of clean water & weakly corrosive liquid, featuring easy installation and wide applications.
Material Specifications
- Tube Shell: Optional 304 stainless steel / 316L stainless steel
- Filler: High purity magnesium oxide powder
- Lead Rod: Fe-Cr-Al alloy
- Insulator: High temperature ceramic base
- Sealing: High temperature resistant silicone
Electrical Specifications
- Rated Voltage: 110V / 220V / 380V (Customizable)
- Rated Power: 300W ~ 6000W (Customized on request)
- Insulation Resistance: ≥50MΩ
- Withstand Voltage Test: 1500V/1min, no breakdown
Structure Specifications
- Thread Size: M16 / M18 (Standard, customizable)
- Tube Diameter: Φ8 / Φ10 / Φ12mm
- Tube Length & Bending Dimension: Customizable according to customer drawings
- Type: U-shape / W-shape / I-shape
Application
Oven, industrial drying oven, fermentation cabinet, food warming table, water tank, cleaning tank, for air dry heating or clean water heating.
Notes
- For dry heating application, ensure air circulation, do not use in fully sealed space.
- For liquid heating, the heating tube body must be fully immersed under liquid level.
- Overvoltage and overpower operation are prohibited.
- Seal the gasket at thread position properly during installation to prevent water leakage.
